Analysis of Key Processes And Equipment Selection for Organized Plant Protein Production Line

With the continued growth of the plant-based food industry, textured plant protein, as a core alternative protein raw material, is experiencing expanding market demand. In response to this trend, how to build a stable and efficient textured protein production line has become a key focus for many companies. Based on Shandong LIGHT M&E CO.,LTD practical experience in protein extrusion processing, this article will systematically review key issues from the perspectives of process principles and equipment configuration.

I. Characteristics and Applications of Textured Plant Protein

Textured plant protein typically uses soy protein, pea protein, wheat protein, etc., as basic raw materials, processed through extrusion to form products with a structure similar to animal muscle fibers. Depending on the end application, it is mainly divided into the following two categories:

1. Extruded Textured Protein

This type of product has a porous structure, excellent water absorption and rehydration speed, and is often used to replace minced meat, vegetarian meat floss, or as a structural modifier for meat products.

2. High-Moisture Textured Protein

With higher water content, its fiber structure is closer to real meat, resulting in a more elastic and chewy texture, suitable as a base material for processing plant-based meat patties, shredded meat, and other similar products.

Different product forms dictate significantly different process paths and equipment configurations; therefore, the product direction must be clearly defined at the initial stage of the project.

II. The Core Role of Twin-Screw Extrusion Process

In the entire production system, the twin-screw extruder is the key unit for achieving protein texturing. Its main functions are reflected in the following aspects:

1. Protein Structure Reconstruction and Fiber Formation

Under the combined effects of temperature, pressure, and mechanical shear, protein molecules undergo denaturation, orientation, and cross-linking reactions, ultimately forming texturized proteins with a fibrous structure. This process places high demands on the equipment's temperature control precision and shear regulation capabilities.

2. Key Process Parameter Control

The textural properties of the product (such as fiberability, toughness, and rehydration performance) are highly dependent on parameter control during the extrusion process, including:

 Temperature gradient: Gradual heating from the feed section to the die section to promote protein denaturation.

 Moisture regulation: Affects protein plasticization and fiber structure formation; high-moisture products have higher requirements for the water supply system.

 Shear strength: Adjusted through screw structure combination, directly determining the degree of fiberization.

 Die cooling: High-moisture products usually require a cooling die to optimize the molding structure.

3. Multi-Formulation Adaptability

For different protein raw materials or compound systems, the equipment needs to have flexible parameter adjustment range to adapt to diverse production needs.

III. Main Components of a Textured Protein Production Line

A complete production line typically consists of the following key modules:

1. Raw Material Handling and Batching System

Including raw material storage, metering, and mixing units to ensure accurate and stable formulations. For high-moisture products, a reliable water supply system is also required.

2. Extrusion and Puffing System

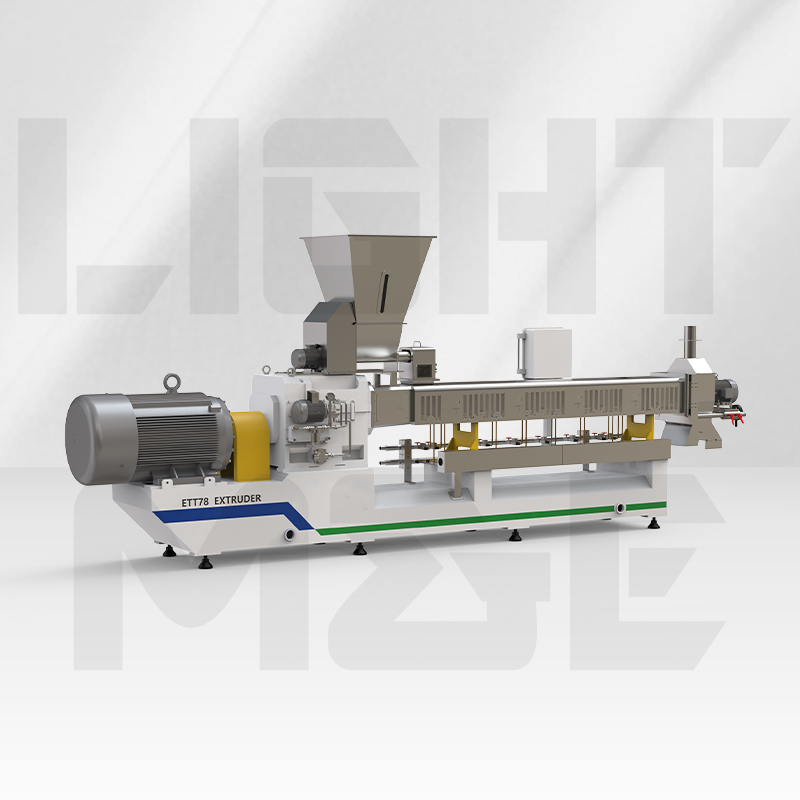

The core equipment is a twin-screw extruder, with supporting components including:

 Precision feeding system (loss-in-weight or volumetric)

 Liquid addition device (for water or steam injection)

 Adjustable screw structure

 Die and cutting device

3. Drying and Cooling System

Puffed products require drying equipment to reduce moisture content and meet storage requirements. The drying process must be kept uniform to prevent surface hardening or internal stress from affecting quality.

High-moisture products are typically treated with cooling or freezing methods.

4. Grinding and Grading System (for puffed products)

Through grinding and sieving processes, different particle size specifications are output to meet diverse application needs.

IV. Key Considerations for Equipment Selection

When planning a production line, it is recommended to focus on the following aspects:

1. Define Product Positioning

Puffed and high-moisture products differ significantly in process and equipment configuration; the direction must be determined in advance based on the target market.

2. Process Adjustment Capability: The evaluation should focus on the equipment's performance in areas such as temperature zone control, screw assembly flexibility, liquid addition stability, and die cooling.

3. Durability of Key Components: The screw and barrel are subject to long-term wear; therefore, material properties and heat treatment processes should be carefully considered to reduce maintenance costs.

4. Drying System Compatibility: The equipment's capacity must match the extrusion system, while ensuring that the drying process does not damage the product structure.

V. Overall Optimization from Single Machine to System: Textured protein production is not the operation of a single piece of equipment, but a system engineering project:

 Ingredient accuracy affects product consistency

 Drying uniformity determines final quality

 Control system integration affects production stability and traceability

Therefore, equipment selection should be planned from the perspective of overall line coordination, rather than single-point optimization.

VI. Recommendations for the Project Launch Phase

For companies planning to enter this field, we recommend focusing on the following preparations in the early stages:

 Define product positioning: Determine product type and specifications based on market demand.

 Raw material testing and evaluation: Significant differences in the performance of protein raw materials from different sources exist.

 Process validation: Accumulate key parameter data through pilot-scale equipment.

 Systematic planning: Avoid additional costs associated with later adjustments.

Conclusion

The production of organized plant protein involves multi-dimensional synergy between raw material characteristics, process control, and equipment performance. Selecting a twin-screw extruder with high adaptability and precise control capabilities, combined with a reasonable system configuration, is fundamental to achieving stable production and quality control.

Shandong LIGHT M&E CO.,LTD  has been deeply involved in the protein extrusion field, committed to providing customers with system solutions from equipment to complete production lines. If you are planning related projects, we welcome further communication to explore more feasible production solutions.
